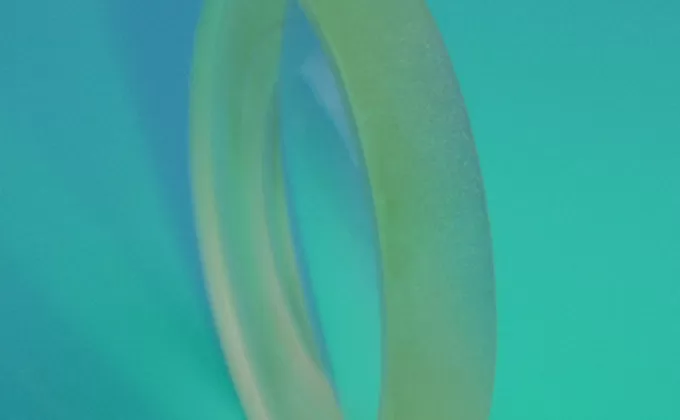

Ecoptik (également connu comme BRD Optique) fournit ménisque lentille, dans les deux positifs et négatifs focales. Ces ménisques sont utiles lorsqu'il est utilisé avec un autre lentilles pour augmenter ou diminuer la longueur focale. Cette lentille ménisque élément configuration ne pas introduire toute supplémentaires coma ou aberrations sphériques

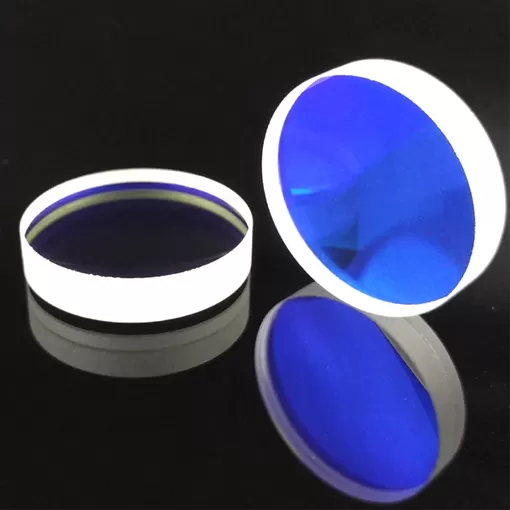

Ecoptik (également connu comme BRD Optique) fournit ménisque lentille, dans les deux positifs et négatifs focales. Sur l'aspect de forme, il peut être divisé en convexe et concave lentille ménisque. Sur l'aspect de l'effet, il peut être divisé en divergentes et convergentes ménisque lentille.
| Matériel | Optique en verre/silice Fondue/saphir etc. |
| Diamètre | 2mm ~ 300mm |
| Tolérance de diamètre | ± 0.05mm(≤ 50mm) |
| ± 0.1mm(>50mm) | |
| Longueur focale | -50mm ~-2000mm |
| Focale tolérance | ± 0.2%(<10mm) |
| ± 0.5%(<10mm-1000mm) | |
| ± 1%(<>1000mm) | |
| Center Épaisseur | 2mm ~ 20mm |
| Surface qualité | 60/40, 40/20, 20/10 |
| Précision de Surface | Λ/2 ~ λ/10@632.8nm,532nm |
| Ouverture claire | > 85% creuser diamètre |
| Centration | <3arc min ~ 30arc sec |
| Revêtement | Selon la demande du client |
| Matériel | Diamètre (Mm) | Convexe Surface Rayon (Mm) | Concave Surface Rayon (Mm) | Center Épaisseur (Mm) | Longueur focale (Mm) |
| H-K9L | 7 | 4.6 | -4.60 | 3 | 41.4 |
| H-LAF38 | 8 | 6.28 | -95.10 | 2.2 | 8.9 |
| H-ZBAF5 | 8 | 9.7 | -19.72 | 2.27 | 26 |
| H-ZF52A | 8 | 12.05 | -9.50 | 4.2 | 217 |
| ZnSe | 8.6 | 11.22 | -50.58 | 1.4 | 8.7 |
| H-ZF62 | 9 | 9.911 | -38.55 | 2.1 | 13.8 |
| H-ZF62 | 9 | 10.59 | -13.37 | 7.64 | 23.8 |
| H-K9L | 10 | 5.19 | -500.00 | 6.2 | 10.1 |
| JGS1 | 10.802 | 7.69 | -7.28 | 3 | 226.1 |
| H-K9L | 11 | 16.57 | -156.37 | 3 | 35.5 |
| H-LAF50A | 12 | 13.176 | -132.74 | 3.3 | 18.7 |
| H-ZK9 | 12 | 11.57 | -48.93 | 2.86 | 23.7 |
| H-ZBAF21 | 12 | 15.374 | -65.11 | 3 | 27 |
| H-ZK3 | 13 | 8.088 | -21.23 | 4 | 23.2 |
| S-LAM7 | 13 | 16.94393 | -170.00 | 2.5 | 24.9 |
| H-ZLAF75A | 14 | 13.804 | -51.24 | 2.4 | 20.1 |
| H-ZF7LA | 14 | 11.324 | -5.50 | 9.54 | 49.3 |
| H-K9L | 14 | 10.36 | -14.62 | 5 | 50.3 |
| H-ZLAF68 | 14 | 10.16 | -6.87 | 6.4 | 282.2 |
| H-ZF6 | 15 | 119 | -18.95 | 3.86 | 30.3 |
| H-LAF3B | 15 | 20.73 | -145.88 | 2.8 | 32.2 |
| H-K9L | 15 | 9.26 | -18.16 | 3.5 | 32.3 |
| H-ZLAF55A | 15 | 28.847 | -293.95 | 3 | 38.1 |
| H-ZK3 | 15.2 | 15.3 | -231.90 | 2.8 | 27.67 |
| LAF10 | 15.5 | 24.66 | -163.59 | 2.7 | 36.52 |
| H-LAF53 | 16 | 12.823 | -33.57 | 4.8 | 25.4 |
| H-ZLAF52 | 16 | 18.67 | -67.51 | 3 | 31.2 |
| H-ZK6 | 16 | 13.996 | -34.67 | 3.5 | 36.4 |
| H-LAK4 | 16 | 22.7 | -39.63 | 4 | 74.8 |
| H-ZLAF68 | 16 | 11.251 | -7.74 | 4.8 | 78.1 |
| ZK9 | 17 | 11.695 | -11.70 | 7 | 81.4 |
| H-ZF13 | 18 | 96.302 | -26.99 | 1.5 | 48.2 |
| H-K9L | 18 | 36.4 | -51.52 | 3.5 | 222.45 |
| H-LAF10L | 18.98 | 21.38 | -32.36 | 3.6 | 69.8 |
| H-ZK9A | 19 | 13.895 | -29.05 | 3.6 | 39.4 |
| ZK7 | 19.4 | 17.783 | -43.05 | 3 | 47.29 |
| H-LAF53 | 20 | 16.482 | -55.46 | 4 | 30.1 |
| H-ZK10 | 20 | 18.054 | -35.41 | 5 | 53.3 |
| H-ZLAF66 | 20 | 21.099 | -28.09 | 5 | 80.3 |
| H-ZK7 | 20 | 60.67 | -778.00 | 2.9 | 106.8 |
| H-BAK4 | 22 | 17.497 | -114.52 | 4.7 | 36.7 |
| H-LAK3 | 22 | 21.04 | -39.81 | 3.8 | 54.7 |
| H-ZBAF3 | 22 | 38.9 | -498.90 | 2.7 | 63.8 |
| H-K9L | 22 | 72.44 | -1130.00 | 5 | 149.5 |
| H-BAK4 | 22.5 | 24.619 | -1735.00 | 5 | 45 |
| H-ZF7LA | 22.6 | 22.44 | -28.91 | 9.88 | 74 |
| H-LAF53 | 23 | 16.788 | -36.22 | 5 | 38 |
| H-LAF53 | 23 | 16.788 | -36.22 | 5 | 38 |
| BAF5 | 23 | 32.8 | -219.10 | 3 | 62.3 |
| H-ZK1 | 23.4 | 46.48 | -176.06 | 4.56 | 109.6 |
| H-LAK59 | 23.48 | 102.33 | -194.98 | 2.5 | 308.2 |
| H-ZF7LA | 24 | 17.819 | -30.30 | 10 | 39.6 |
| H-K9L | 25 | 17.3 | -27.00 | 4.55 | 80.3 |
| H-K9L | 25.4 | 32.1 | -82.20 | 3.6 | 100 |
| JGS1 | 25.4 | 31 | -91.20 | 4 | 100 |
| H-K9L | 25.4 | 66.2 | -182.20 | 2.8 | 200 |
| JGS1 | 25.4 | 64.2 | -209.80 | 2.9 | 200 |
| H-K9L | 25.4 | 100.9 | -288.20 | 2.5 | 300 |
| ZK9 | 25.5 | 22.96 | -89.26 | 4.4 | 48.59 |
| N-SF6 | 26 | 32.15 | -176.40 | 4 | 43.2 |
| H-LAK3 | 26 | 26.79 | -127.94 | 4.2 | 44.4 |
| H-K9L | 26 | 23.93 | -331.70 | 6 | 49.58 |
| H-ZK11 | 27 | 23.07 | -77.04 | 4.8 | 49.8 |
| H-LAK1 | 27 | 26.24 | -74.99 | 4.1 | 59.8 |
| H-ZK10 | 27 | 38.688 | -1541.90 | 5 | 63.7 |
| H-ZK10 | 27 | 43.279 | -311.79 | 5 | 80 |
| H-ZK9 | 28 | 21.82 | -83.35 | 5.5 | 46.07 |
| H-ZBAF21 | 28 | 37.865 | -862.87 | 3.5 | 54.7 |
| H-LAF53 | 30 | 18.75 | -52.24 | 7.5 | 35.9 |
| H-K9L | 30 | 18.8 | -37.95 | 5.9 | 65.7 |
| ZK9 | 32 | 23.99 | -42.85 | 8 | 75.58 |
| H-BAK4 | 33 | 23.4 | -38.20 | 6.2 | 95.14 |
| H-K9L | 33 | 50.35 | -85.11 | 3.1 | 231.74 |
| H-ZF6 | 33.5 | 213.8 | -46.03 | 2.97 | 71.9 |
| H-ZK98 | 34 | 49 | -75.00 | 4.5 | 213.7 |
| H-ZBAF3 | 35 | 38.15 | -212.35 | 10 | 69.2 |
| H-K9L | 36 | 64.9 | -116.41 | 3.6 | 277.48 |
| H-ZBAF3 | 40 | 52.2 | -2148.00 | 12.1 | 81.3 |
| H-K9L | 40 | 45.71 | -62.37 | 3.5 | 309.27 |
| H-K9L | 41 | 78.52 | -622.30 | 4.1 | 173.57 |
| H-K9L | 41 | 65.77 | -111.94 | 3.7 | 300.61 |
| F2 | 42 | 28.5 | -71.30 | 8.8 | 71.8 |
| H-ZBAF20 | 42 | 32.137 | -59.02 | 14 | 82.8 |
| H-QK3L | 42 | 35.471 | -34.95 | 14.1 | 621 |
| H-ZF6 | 43.2 | 51.2 | -71.28 | 4 | 221.7 |
| H-QK3L | 44 | 37.026 | -239.30 | 8 | 88.7 |
| H-ZF6 | 45 | 48.91 | -87.90 | 5 | 136.7 |
| H-K9L | 48.5 | 72.44 | -150.31 | 4.5 | 265.57 |
| H-ZK11 | 49 | 32.81 | -104.23 | 11.4 | 70.6 |
| H-K9L | 50.5 | 81.75 | -145.88 | 4 | 352.64 |
| H-K9L | 58 | 107.15 | -477.00 | 7 | 265.1 |
| F4 | 59 | 1267.1 | -266.16 | 5 | 544 |
| H-K9L | 60 | 39.72 | -142.41 | 13.8 | 102 |
| H-K9L | 60.274 | 66.37 | -178.49 | 10.66 | 198 |
| H-K9L | 60.274 | 122.987 | -424.51 | 10.66 | 331 |
| H-ZF2 | 74 | 65.851 | -121.34 | 9 | 201 |
| H-ZBAF21 | 76 | 157.04 | -306.97 | 6 | 437 |
| H-K9L | 81 | 203.7 | -2773.00 | 9.96 | 424.84 |
| H-LAK7 | 104 | 181.59 | -320.37 | 12 | 567.4 |
| H-K9L | 106 | 110.1 | -257.80 | 11.3 | 362.4 |
